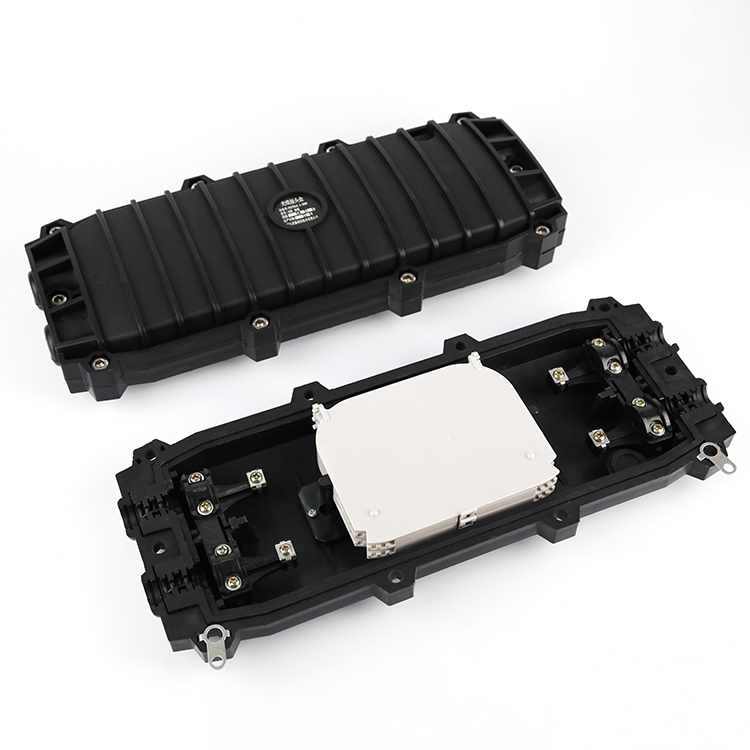

optical cable splice box is of special design, material selection, linear shell, fastening device and excellent seal technique to ensure the reliability and stability of the product, the box can provide reliable, stable and flexible protection for the direct, terminal or branching connection of the fiber.
Application：
Ο direct burying Ο man well Οhand hole Ο wall-cling Ο crossover
Properties：
Aging resistance: stable in heat, heat energy radiation, air, ozone, etc.
Corrosion resistance: resistant to diluted acid, saline water, oxidant, aliphatic hydrocarbon, etc.
Seal technique: unique seal technique, excellent waterproof and airtight property.
Mechanical properties: resistant to shake, bump, draw & distortion of the optical cable and intense temperature change, etc.
Locking device: require no special tools, easy installation and operation.
Branching function: the two-in-two-out design at the two terminals provides multiple inlet-outlet options for the butt connection and direct connection of the fiber.
Fixing components: double fixing components which shall provide double protection for the fixing of the optical cable.
Connection function: layered turn-cover structure, the optical cable can pass in or out via any of the four corners, no need to dismantle other connection trays during the operation.
Capacity：
Capacity of the connection tray: single-core bunch 12 cores/tray, double-core bunch 24 cores/tray, belt (4, 6, 8, 12 cores) 6 units/tray.
Maximum capacity: can accommodate as much as 8 connection trays.
Optical cable inlet-outlet hole: the ports at the two terminals can accommodate 4 optical cables with their diameter no more than 16mm.
Schematic diagram for the accessories：
Please refer to the packing list for the name of the accessories in the diagram.
Product Directory：
|
Product Name
|
Dimension
|
12-core Tray
Single-core (Capacity) |
24-core Tray
Double-core (Capacity) |
4, 6, 8, 12 cores
belt (capacity) |
|
GJS10-G optical
cable splice box |
450X216X110
|
12 cores
|
24 cores
|
24 、36、48、72 cores
|
|
GJS10-G optical
cable splice box |
450X216X160
|
24 cores
|
48 cores
|
48、72、96、144 cores
|
|
GJS10-G optical
cable splice box |
450X216X160
|
36 cores
|
72 cores
|
72、108、144、216 cores
|
|
GJS10-G optical
cable splice box |
450X216X160
|
48 cores
|
96 cores
|
96、144、192、288 cores
|
|
GJS10-G optical
cable splice box |
450X216X160
|
60 cores
|
120 cores
|
120、180、240、360 cores
|
|
GJS10-G optical
cable splice box |
450X216X160
|
72 cores
|
144 cores
|
144、216、288、432 cores
|
|
GJS10-G optical
cable splice box |
450X216X160
|
84 cores
|
168 cores
|
168、252、336、504 cores
|
|
GJS10-G optical
cable splice box |
450X216X160
|
96 cores
|
192 cores
|
192、288、384、576 cores
|
Notes: please make clear bunch or belt in the order (the belt can be divided into 4-core, 6-core, 8-core and 12-core).
