Application：
Ο direct burying Ο man well Ο hand hole Ο wall-cling Ο crossover
Properties：
Aging resistance: stable in heat, heat energy radiation, air, ozone, etc.
Corrosion resistance: resistant to diluted acid, saline water, oxidant, aliphatic hydrocarbon, etc.
Seal technique: unique strip seal technique, no need to fill in any resin, waterproof, moistureproof and airtight.
Mechanical properties: resistant to shake, bump, draw & distortion of the optical cable and intense temperature change, etc.
Locking device: require no special tools, easy installation and operation.
Branching function: the three-in-three-out design at the two terminals provides more solutions for the future network construction and community network extension.

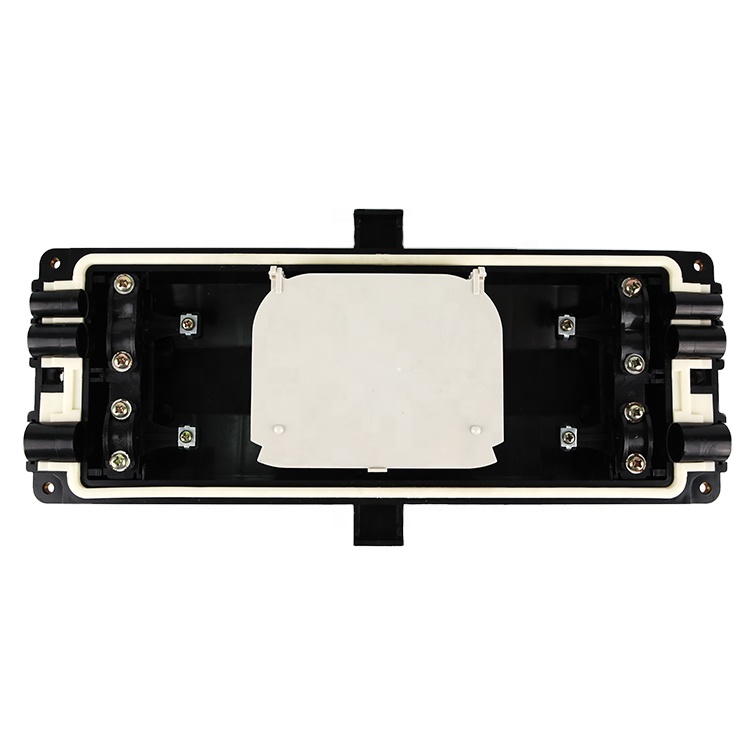

Connection function: layered turn-cover structure, no need to dismantle other connection trays during the operation.
Reservation function: reserve the redundant fiber on the reservation frame outside the connection tray to ensure the regularity of the fiber within the connection tray.
|
 |
|
Capacity：
Capacity of the connection tray: single-core bunch 12 cores/tray, double-core bunch 24 cores/tray, belt (4, 6, 8, 12 cores) 6 units/tray.
Maximum capacity: can accommodate as much as 4 connection trays.
Optical cable inlet-outlet hole: the ports at the two terminals can accommodate 2 optical cables with their diameter no more than 23mm, 2 optical cables with their diameter no more than 20mm and 2 optical cables with their diameter no more than 16mm respectively.
Schematic diagram for the accessories：
Please refer to the packing list for the name of the accessories in the diagram.
