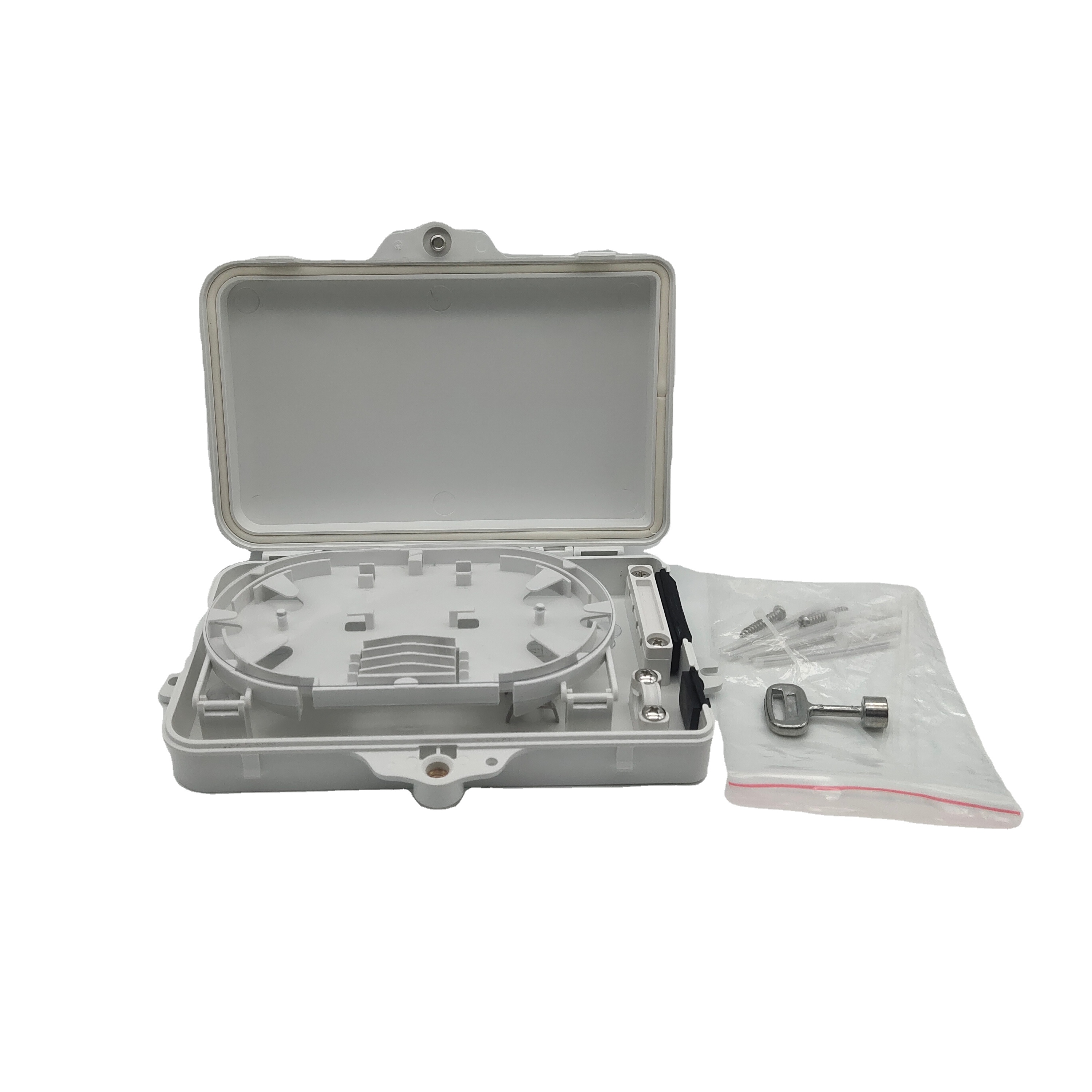

Type C optical cable terminal box is made of material of high performance& chemical resistance, and undergoes static plastic spraying treatment to ensure its reliability and stability; the box can be installed on the indoor wall and table; it is of strong mechanical strength, beautiful and elegant exterior; it is capable of providing protection for the direct, terminal or branching connection of the fiber.
Properties：
Connection function: layered turn-cover structure, equipped with special inside device to stop the connection
tray from moving forth and back.
Reservation function: reserve the redundant fiber on the cabling rack outside the connection tray to ensure the regularity of the fiber within the connection tray.
Capacity：
Capacity of the connection tray: single-core bunch 6 cores/tray.
Maximum capacity: can accommodate as much as 4 connection trays.
Optical cable inlet-outlet hole: can accommodate 1 optical cable with its diameter no more than 16mm, 2 optical cables with their diameter no more than 12mm respectively.
Schematic diagram for the accessories：
Please refer to the Instruction for the name of the accessories in the diagram.
Product Directory：
|
Product Name
|
Dimension
|
Optical Cable
Inlet-outlet Hole |
12-core Tray
Single-core (Capacity) |
|
GP160-C optical cable terminal box
|
265X155X55
|
3 units
|
6 cores
|
|
GP160-C optical cable terminal box
|
265X155X55
|
3 units
|
12 cores
|
|
GP160-C optical cable terminal box
|
265X155X55
|
3 units
|
18 cores
|
|
GP160-C optical cable terminal box
|
265X155X55
|
3 units
|
24 cores
|
