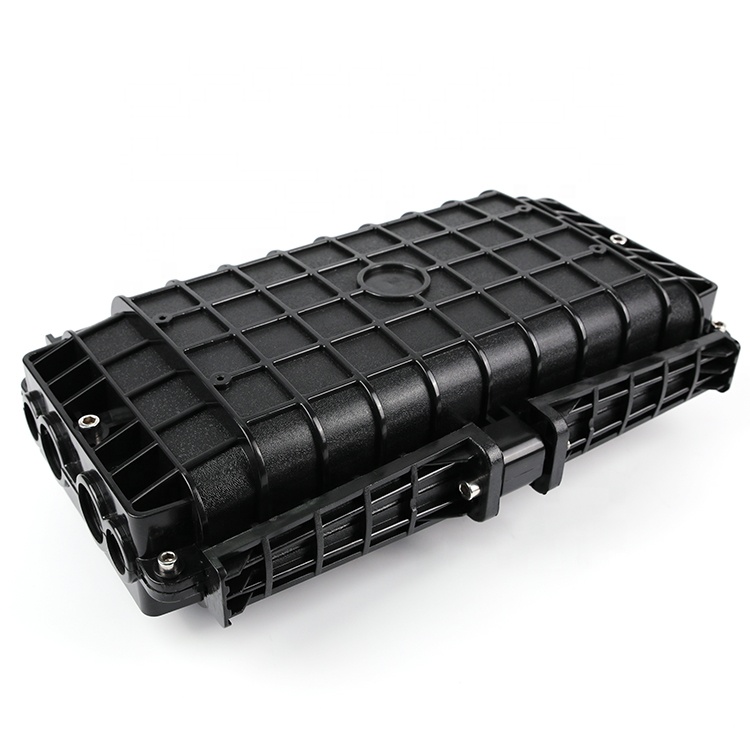

Optical Cable Splice Box (Horizontal Type)

Application：
Ο direct burying  Ο man well  Ο hand hole  Ο wall-cling  Ο crossover
Properties：
         Aging resistance: stable in heat, heat energy radiation, air, ozone, etc.
         Corrosion resistance: resistant to diluted acid, saline water, oxidant, aliphatic hydrocarbon, etc.
         Seal technique: unique seal technique, excellent airtight and waterproof property.
         Mechanical properties: resistant to shake, bump, draw & distortion of the optical cable and intense temperature change, etc.
         Locking device: require no special tools, easy installation and operation.
         Branching function: the three-in-three-out design at the two terminals provides more solutions for the future network construction and community network extension.

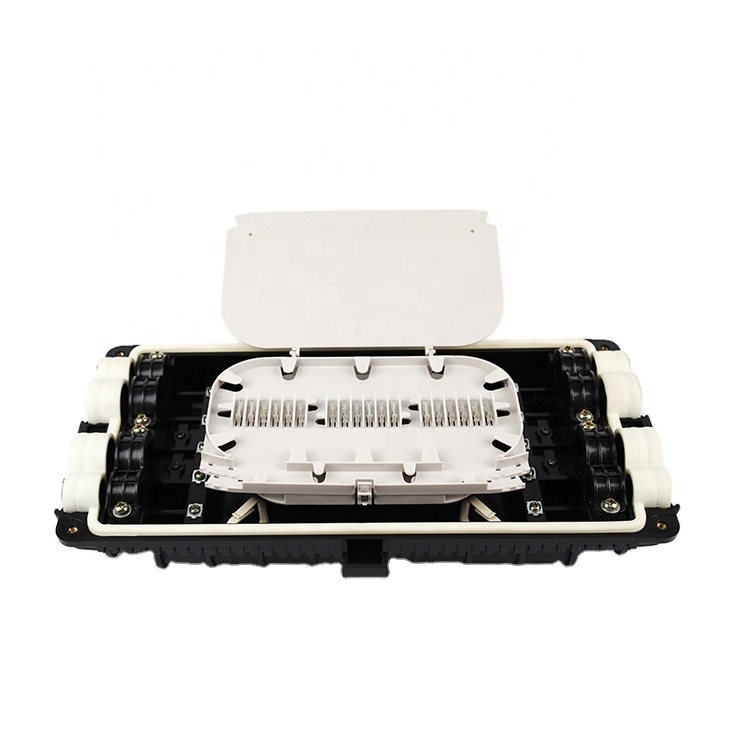

         Connection function: layered turn-cover structure, no need to dismantle other connection trays during the operation.
Capacity：
         Capacity of the connection tray: single-core bunch 6 cores/tray,

double-core bunch 12 cores/tray, belt (4, 6, 8, 12 cores) 2 units/tray.
         Maximum capacity: can accommodate as much as 4 connection trays.

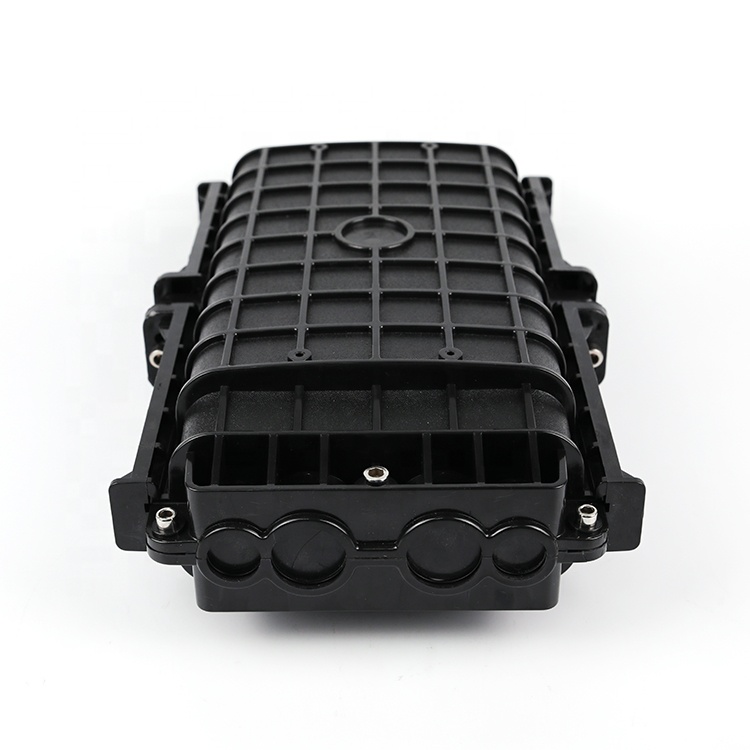

          Optical cable inlet-outlet hole: the ports at the two terminals can accommodate 2 optical cables with their diameter no more than 16mm and 4 optical cables with their diameter no more than 13mm respectively.
Schematic diagram for the accessories：
         Please refer to the packing list for the name of the accessories in the diagram.
