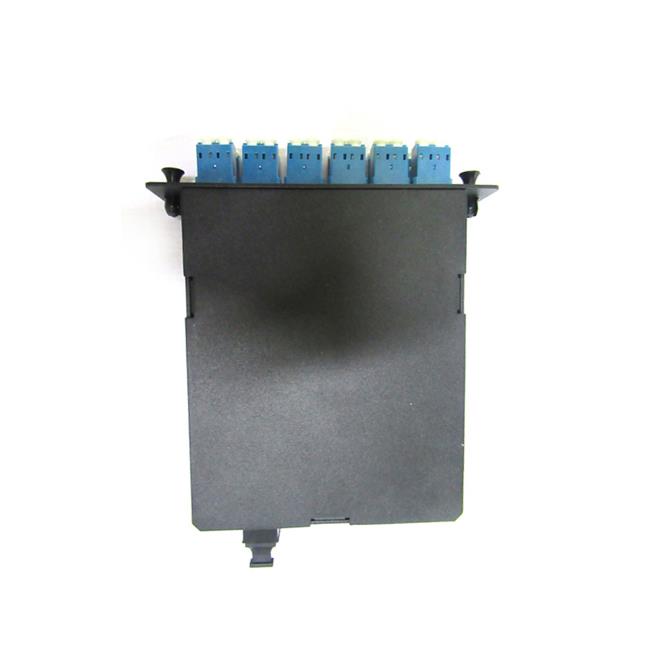

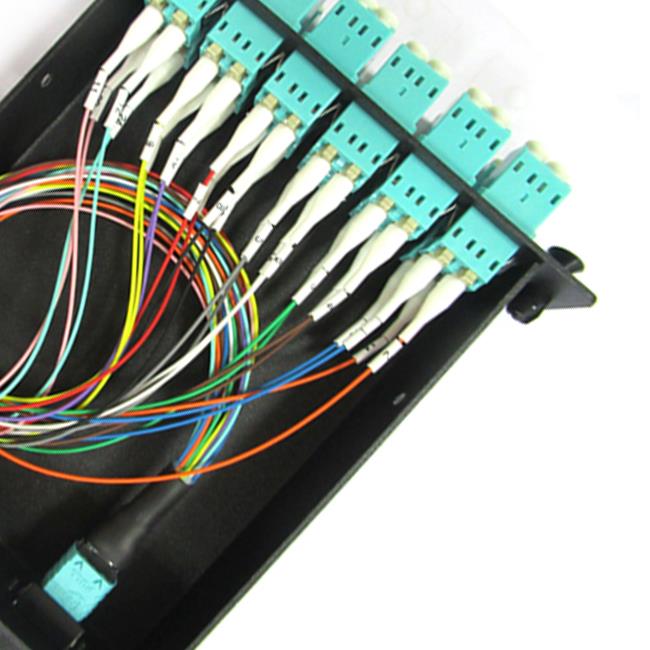

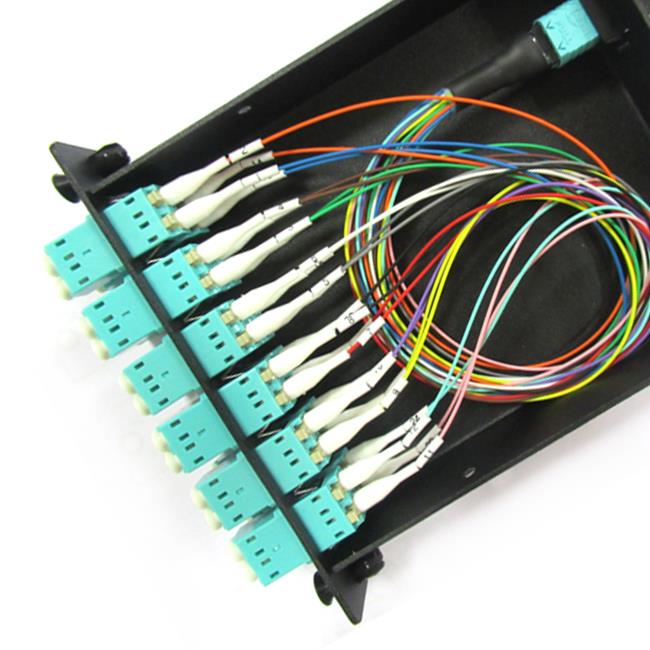

product name: MTP-LGX-12LCD Number of fiber cores: 24 Front connector: 12xLC duplex Backend connector: 2xMTP/MPO (male) MTP adapter: Convex-concave key Fiber type: SM or MM optional Operating temperature: 0°C~70°C (32°F~158°F) Storage temperature: -40°C~+75°C (-40°F~167°F)
colour:blackReturn loss:""SM MTP ≥ 50dB, LC ≥ 50dB MM MTP ≥ 20dB, LC ≥ 35dB""
RoHS compliant:meetsBackend connector:2xMTP/MPO (male)
Front connector:12xLC duplexStorage temperature:—40°C~+75°C (-40°F~167°F)
Insertion loss:""SM MTP≤0.7dB, LC≤0.2dB MM MTP≤0.5dB, LC≤0.2dB""Types:LGX
Operating temperature:0°C~70°C (32°F~158°F)Fiber type:SM or MM optional
product name:MPO-LGX-12LCDSize (HxWxD):
MTP adapter:Convex-concave keyNumber of fiber cores:24
