We supply LGX Cassette 24F 2*MPPO to 12*LC Duplex . Shenzhen Adtek Technology Co., Ltd. was established in 2007, as the R&D base of Adtek Group, it is mainly work on fiber optic patch cords & cables and other fiber communications products.
Product introduction

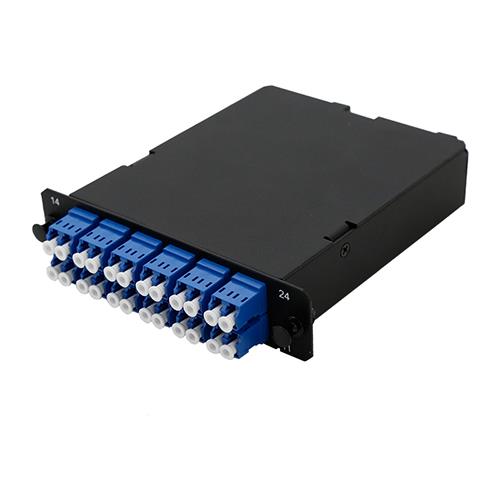

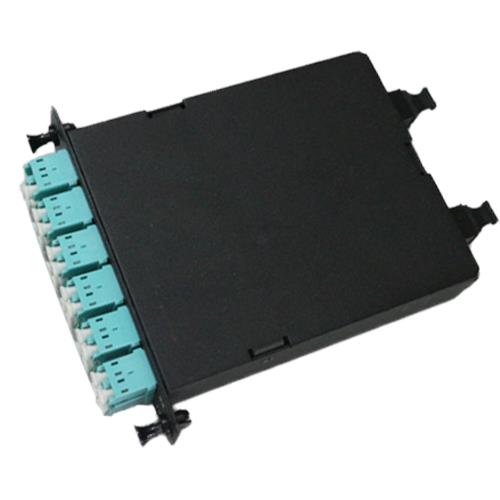

Full loaded 3*MPPO Male to 12*LC Duplex HD MPPO Cassette is designed for 10G/40G Ethernet and Data Center
Product parameters
|
Part Number |
LGX-2MPPO-12LCDX |
Fiber Count |
24 |
|
Front Connector |
LC UPC/PC DX adapter (12 pcs) |
Fiber Type |
SM and MM optional |
|
Channel Insertion Loss |
≤ 0.2dB (LC) |
Return Loss |
SM≥ 55dB (LC) MM≥ 35dB (LC) |
|
Cassette Material |
Metal (SPCC) |
Color |
Black |
|
Cassette Type |
LGX |
Dimensions (H*W*D) |
129*127*29mm |
Product features and applications
Features
1.Maximum capacity: 24 fibers
2.Available for 2*MPPO and 2*12 LC duplex fiber patch cord
3.Suitable for singlemode and multimode.
4.Compliant: TIA/EIA-568-C.3
5.Dimensions (HxWxD): 29x127x129mm
