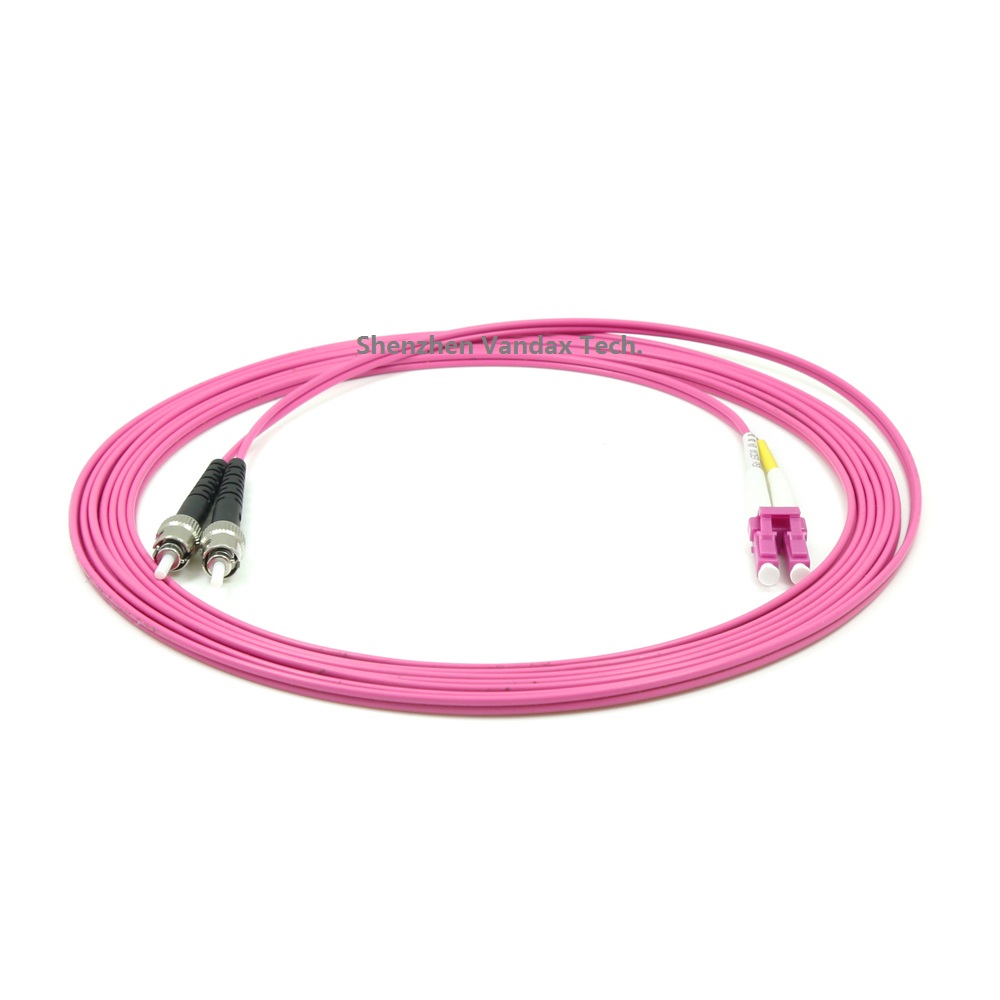

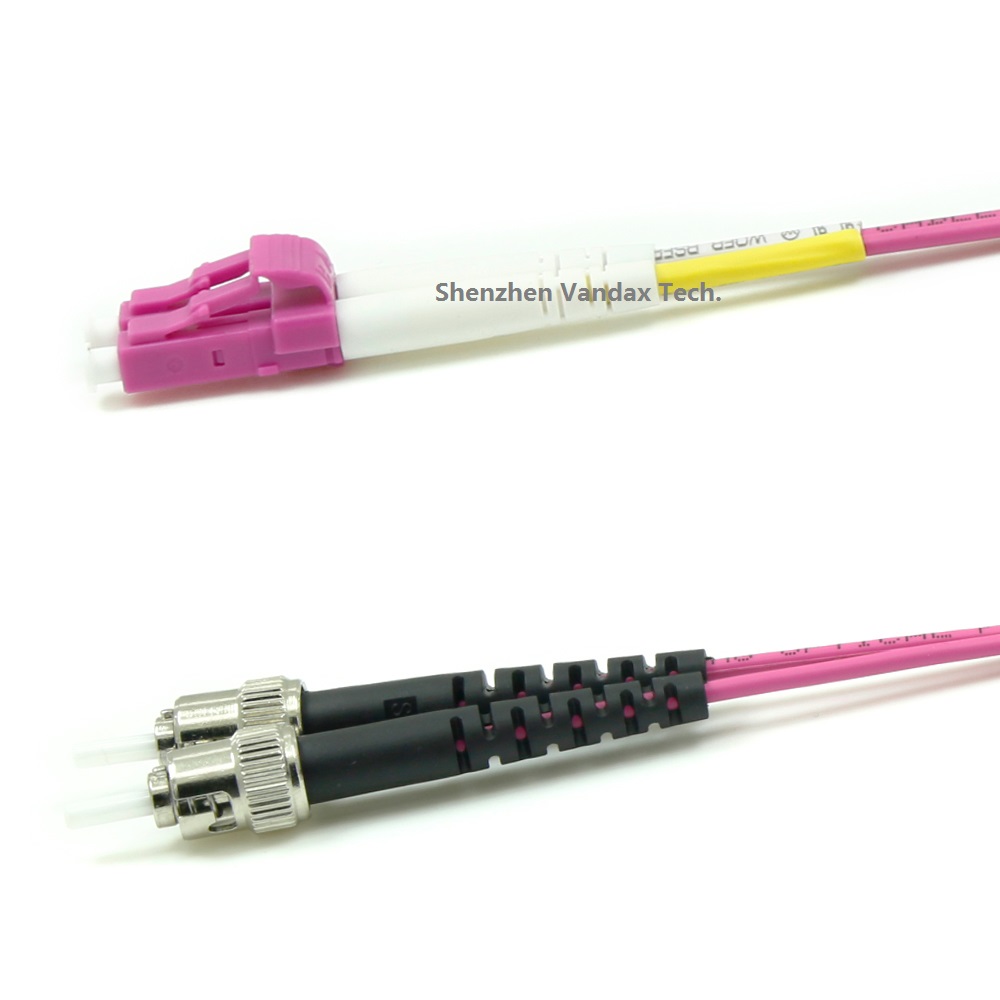

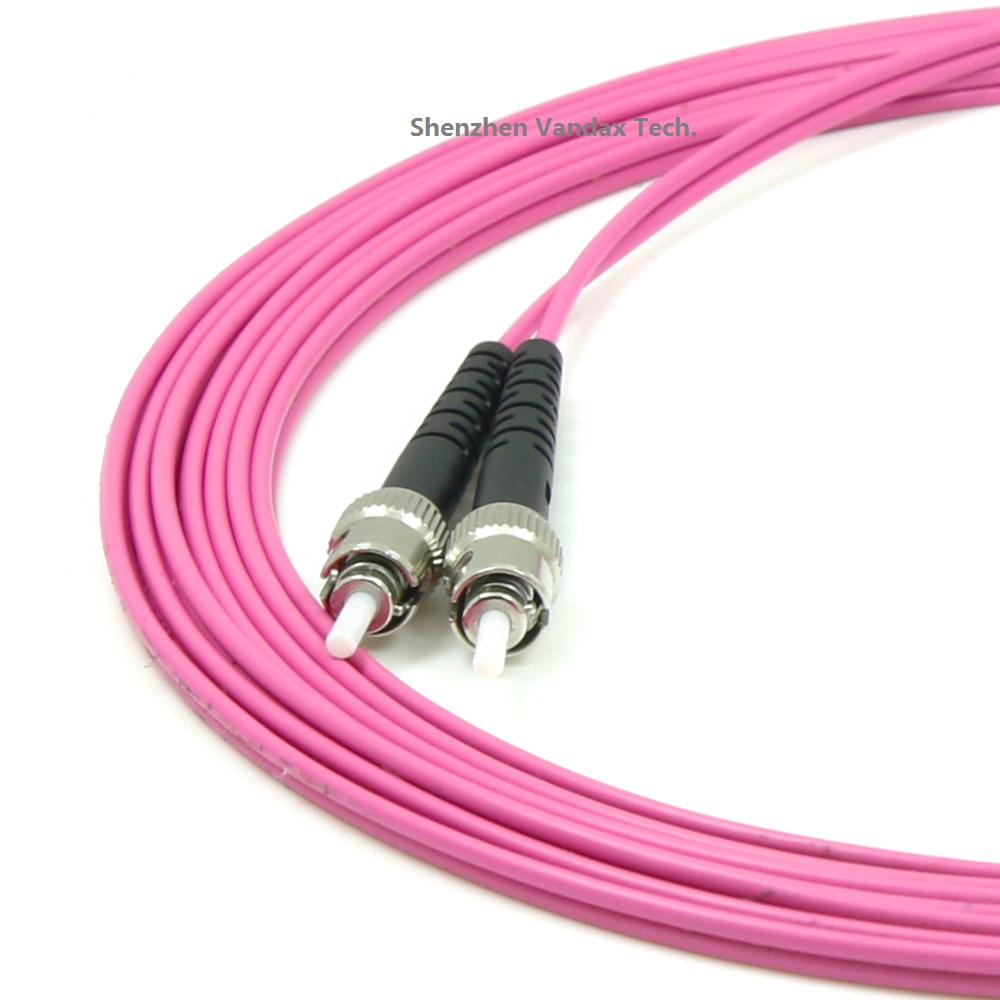

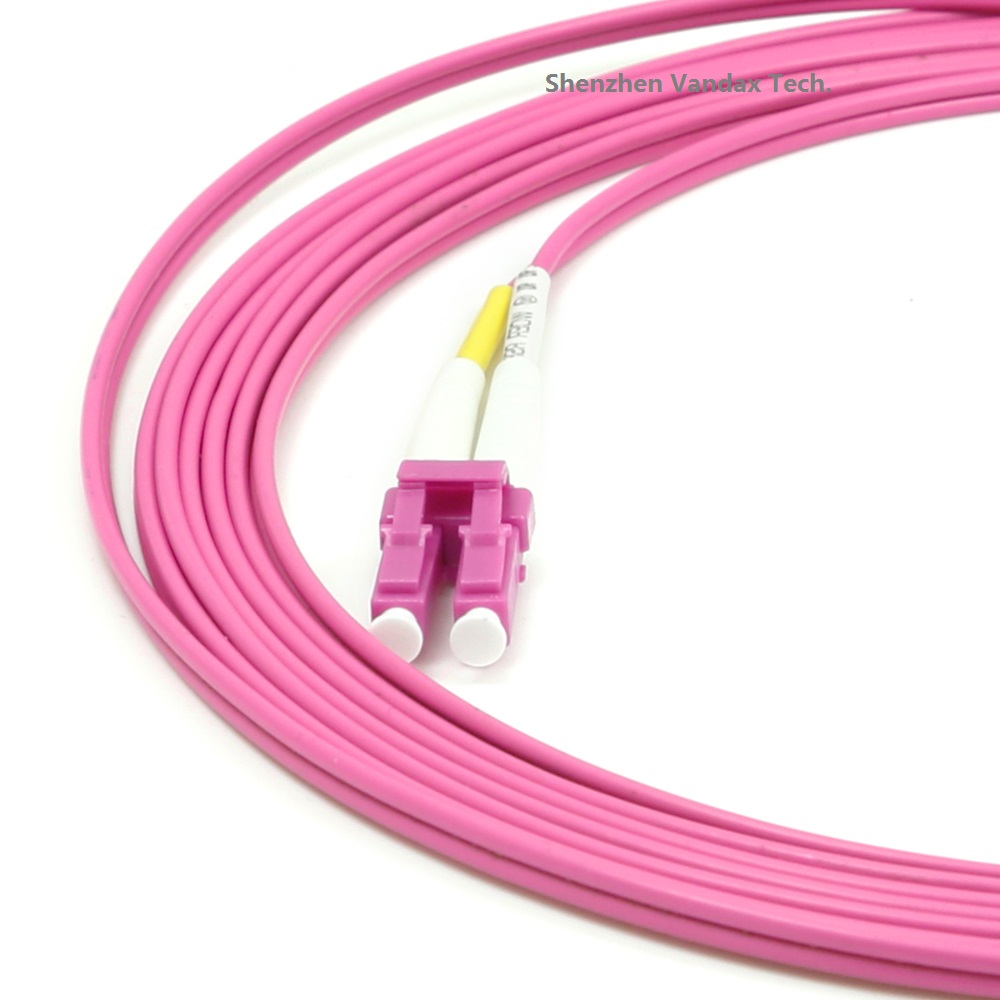

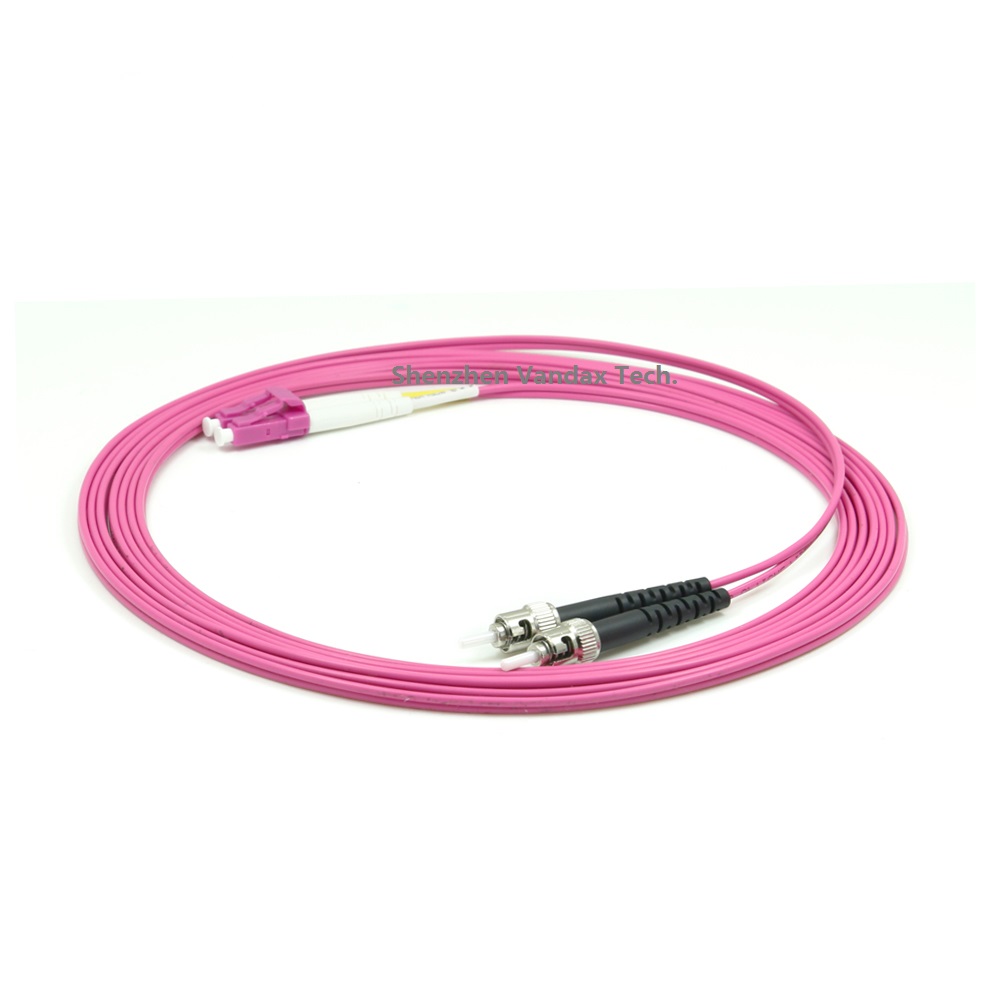

LC-ST Duplex OM4 Fiber Optic Patch Cable
LC-ST Duplex OM4 Fiber Optic Patch Cable LC-ST Duplex OM4 Fiber Optic Patch Cable LC-ST Duplex OM4 Fiber Optic Patch Cable LC-ST Duplex OM4 Fiber Optic Patch Cable LC-ST Duplex OM4 Fiber Optic Patch Cable

LC-ST Duplex OM4 Fiber Optic Patch Cable

Product ID : VDX-PC-011
Product Tags :
Product Attributes :
Item:
OM4 Fiber Optic Patch Cord
Polishing:
PC, UPC, APC
Mode Type:
Singlemode, Multimode
Fiber Cores:
Simplex, Duplex
Fiber diameter:
0.9mm, 2.0mm, 3.0mm
Connector:
SC, LC, FC, ST,MTRJ, MPO, etc
Insertion Loss::
UPC< 0.2dB, APC<0.3dB
Return Loss:
PC≤50dB; UPC≤55dB; APC≤60dB
Testing:
Interferometer Test Acceptable
Certificate:
ISO, CE, ROHS
Product Description

Product Features

  1. High-quality ferrules
    2. Strict quality testing: Insertion Loss and Return Loss 100% tested
    3. Compliant with Telcordia GR-326-CORE, IEC, REACH, ROHS standards
    4. Various fiber types: OS2(9/125um), OM1(62.5/125um), OM2(50/125um), OM3 (50/125um), OM4(50/125um) and OM5(50/125um), all from YOFC and Corning
    5. PVC, OFNR(Riser), OFNP(Plenum) and LSZH(Low-Smoke Zero-Halogen) jacket upon request
    6. Available fiber cable OD: Φ0.9, Φ1.2, Φ1.6, Φ1.8, Φ2.0, Φ2.8, Φ3.0, etc.
    7. LC/SC/ST/FC/MPO/MTP/MTRJ/MU/DIN/D4/SMA and more connectors
    8. We welcome custom cable order per your specific request

Typical Applications

  1. 1. CATV & FTTX
    2. Active device termination
    3. A variety of connectors
    4. Precise installations
    5. Industrial applications
    6. Fiber optic communication networks
    7. Fiber optic equipment and instrument
    8. Long-distance, outdoor/indoor cabling, trunking, etc
