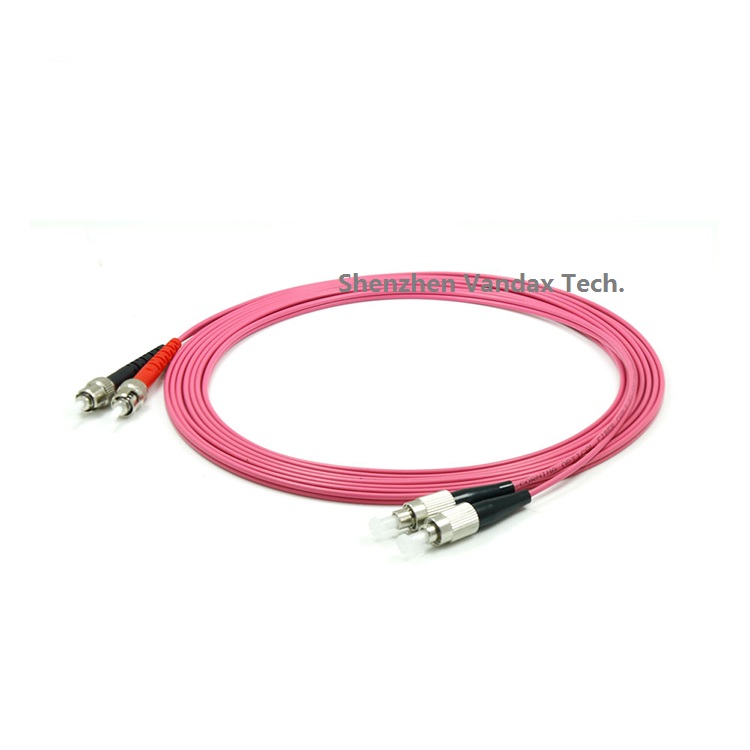

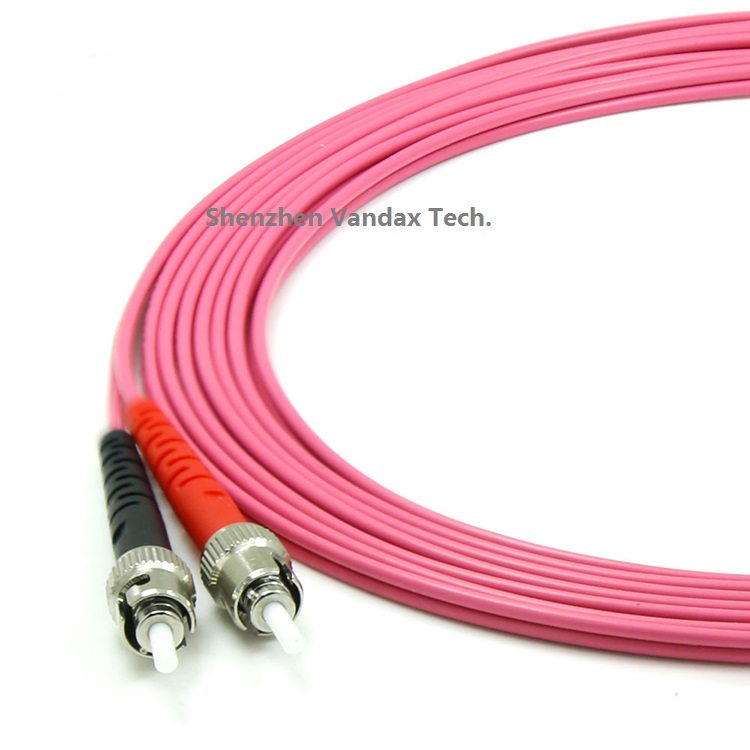

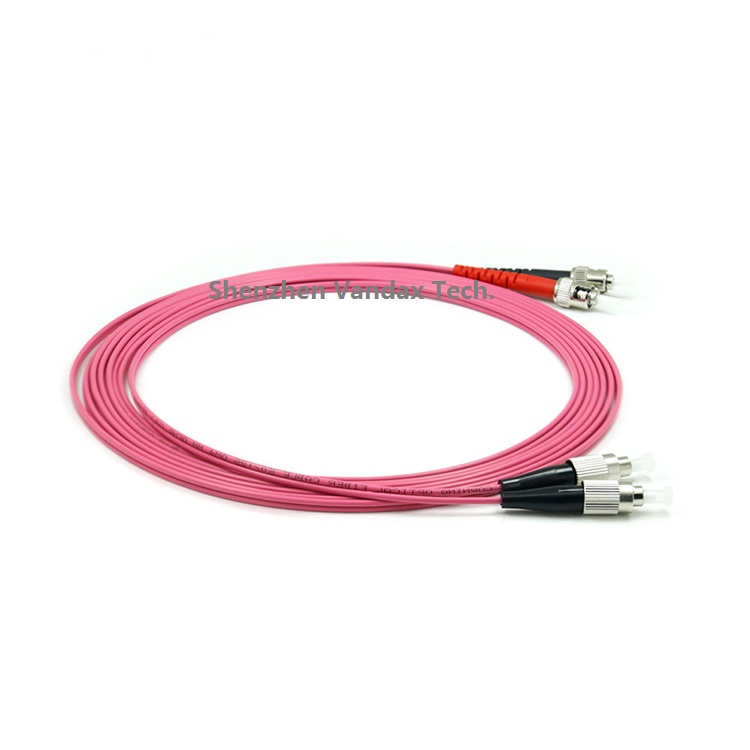

 FC-ST Duplex OM4 Multimode Fiber Optic Patch Cable
 FC-ST Duplex OM4 Multimode Fiber Optic Patch Cable  FC-ST Duplex OM4 Multimode Fiber Optic Patch Cable  FC-ST Duplex OM4 Multimode Fiber Optic Patch Cable

FC-ST Duplex OM4 Multimode Fiber Optic Patch Cable

Product ID : VDX-PC-012
Product Tags :
Product Attributes :

Type:
Fiber Optic Cable
Multi-Mode Fiber:
OM4
No. of Fiber:
2.
Use:
FTTH
Connector Type:
SC, LC, FC, ST, MTRJ, MPO, etc
Polishing Type:
PC,UPC,APC
Fiber Mode:
OS2, OM1, OM2, OM3, OM4
Fiber count:
Simplex/Duplex
Cable Diameter:
0.9mm;2.0mm;3.0mm
Jaket:
PVC/LSZH/OFNP
Insertion Loss:
≤0.2dB
Return Loss:
UPC≥50dB; APC≥60dB
Testing:
Interferometer Test Acceptable
Product Description

Product Features

  1. High-quality ferrules
    2. Strict quality testing: Insertion Loss and Return Loss 100% tested
    3. Compliant with Telcordia GR-326-CORE, IEC, REACH, ROHS standards
    4. Various fiber types: OS2(9/125um), OM1(62.5/125um), OM2(50/125um), OM3 (50/125um), OM4(50/125um) and OM5(50/125um), all from YOFC and Corning
    5. PVC, OFNR(Riser), OFNP(Plenum) and LSZH(Low-Smoke Zero-Halogen) jacket upon request
    6. Available fiber cable OD: Φ0.9, Φ1.2, Φ1.6, Φ1.8, Φ2.0, Φ2.8, Φ3.0, etc.
    7. LC/SC/ST/FC/MPO/MTP/MTRJ/MU/DIN/D4/SMA and more connectors
    8. We welcome custom cable order per your specific request

Typical Applications

1. CATV & FTTX
2. Active device termination
3. A variety of connectors
4. Precise installations
5. Industrial applications
6. Fiber optic communication networks
7. Fiber optic equipment and instrument
8. Long-distance, outdoor/indoor cabling, trunking, etc
