> SM/OM1/OM2/OM3/OM4 fiber available
> LC,SC,FC,ST,E2000,DIN,MTRJ,MPO connector configurations available
> 1m/2m/3m/5m/7m/10m/15m/20m/25m/30m lengths available
> Available in standard or custom configurations
> 0.9mm/2.0mm/3.0mm diameter
> Low back reflection and insertion loss
> PVC/LSZH jacket
> UL, RoHS Compliant

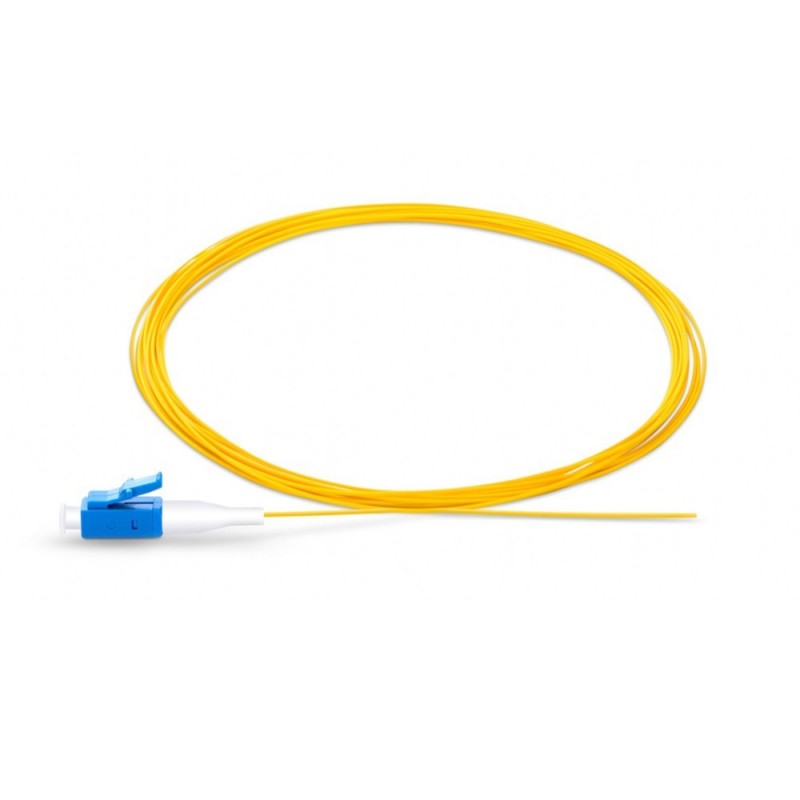

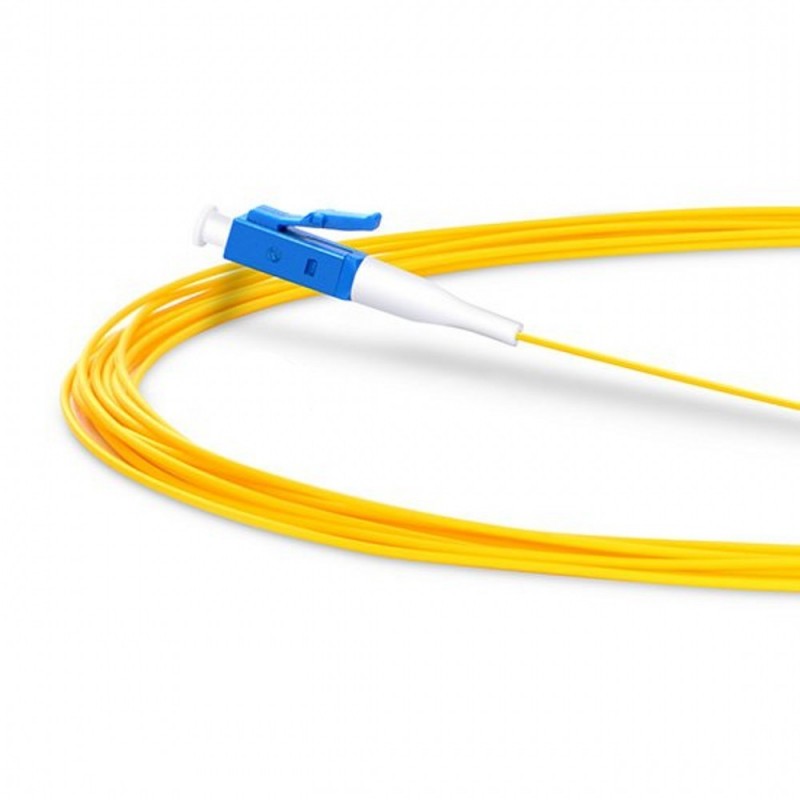

LC UPC Pigtail Singlemode Simplex
| Model | VDX-FC-FPILC1 | |
| Brand | OEM Brand, VDX Cable | |
| Cable Diam | 0.9mm / 2mm / 3mm | |
| fiber type | G657A / G652D or others | |
| Jacket | PVC / LSZH | |
| Connector type | SC FC ST LC UPC/APC | |
| Insertion loss | ≤ 0.3dB | |
| Return loss | ≥ 55 dB | |
| Length | 1m / 2m / 3m or customized | |
| OEM | Support | |
| Color | Yellow or Customized | |
