> 12-Core, low Insertion Loss MT ferrules
> For QSFP+ Transceiver
> LC connector high fiber density
> Low Insertion Loss
> Ferrule end surface pre-domed
> High precision alignment
> ROHS compliant
> Nickel plated brass body
> Free-floating ceramic ferrule
> Bayonet style housing for easy termination

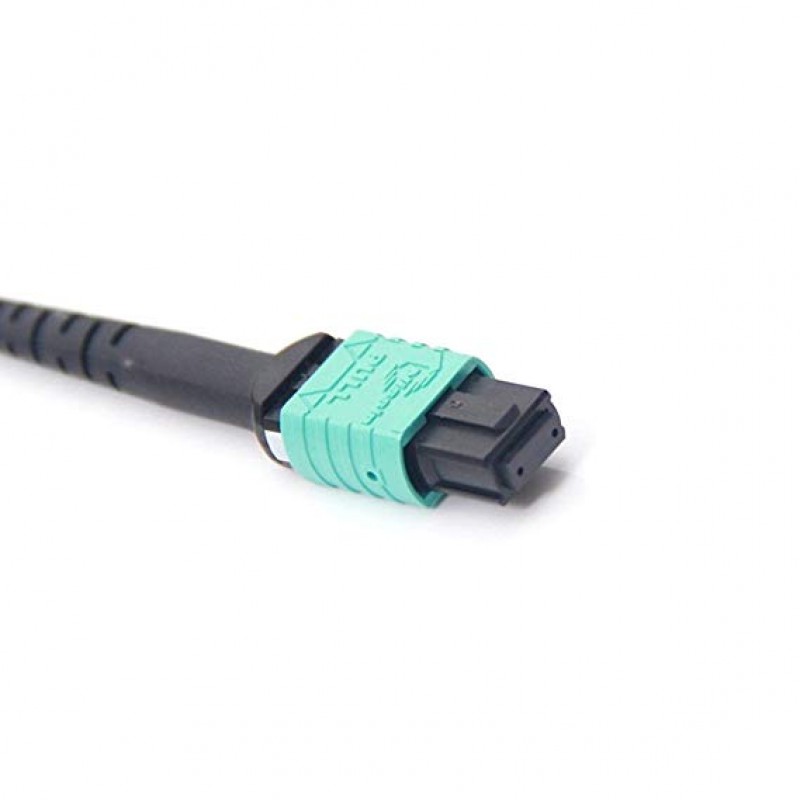

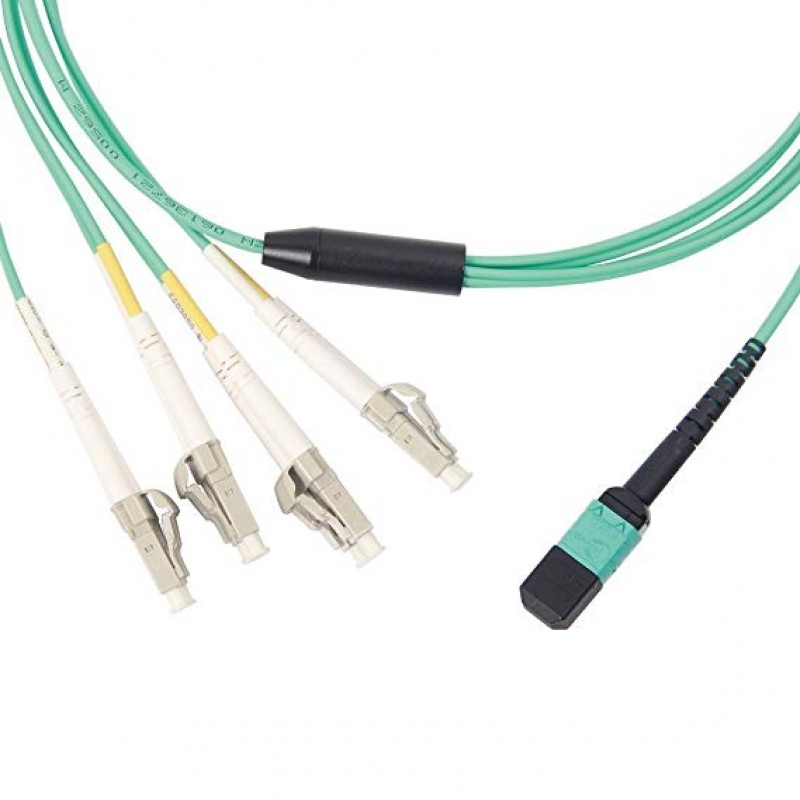

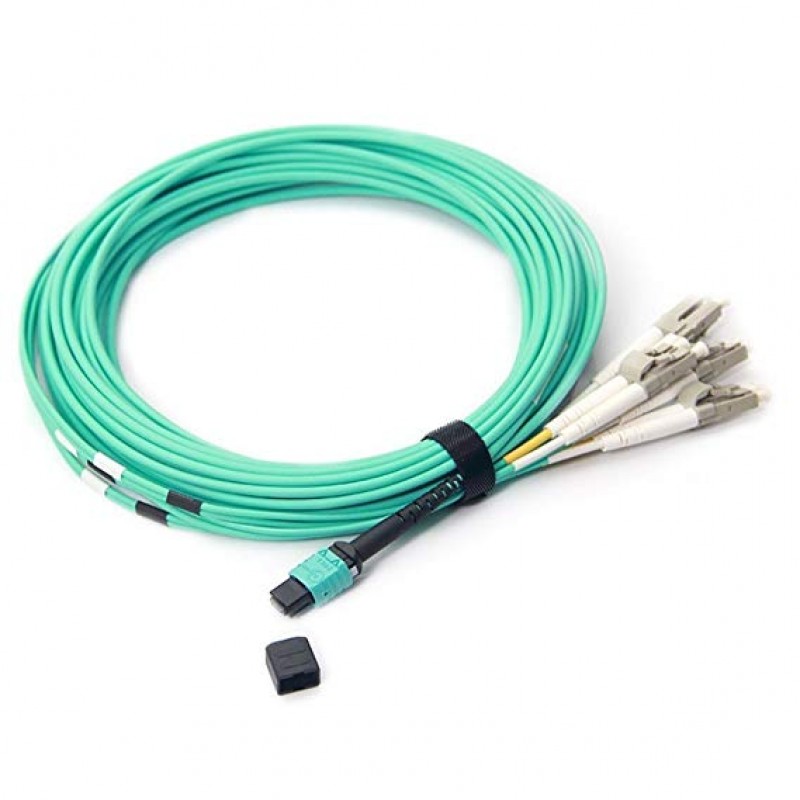

MPO to 8xLC Fibre Breakout Cable
MPO/MTP cabling system is ideally suited for high density environment that demands space saving cable density and innovative cable management solutions. Simply install the MPO MTP trunk cable within the building and connect to rear of a MPO Patch panel or Fan out.
| Model | VDX-FC-FPMP08 | |
| Brand | OEM Brand, VDX Cable | |
| Connector | MTP or MPO to LC | |
| Diameter | 3.0MM | |
| fiber type | SM OS2 or MMF OM3/OM4 | |
| Jacket material | LSZH | |
| Return Loss (dB) | ≥45 | |
| Insertion Loss (dB) | ≤0.2 (max≤0.3) | |
| Repeatability (dB) | ≤0.1 | |
| Temperature range | Operation: -10°C to +70°C Installion: -5°C to +50°C | |
| Application | Telecommunication | |
