ADSS Cable All Dielectric Self-Supporting Mini Span cable Single Jacket
ADSS Cable All Dielectric Self-Supporting Mini Span cable Single Jacket

ADSS Cable All Dielectric Self-Supporting Mini Span cable Single Jacket

Product ID : HC-FOC-ADSS1
Product Tags :
Product Attributes :

> Can be installed without shutting off the power.
> Excellent AT performance. The maximum inductive
> Light weight and small diameter reducing the load
> Caused by ice and wind and the load on towers and backprops.
> Large span lengths and the largest span is over 500m.
> Good performance of tensile strength and temperature.

Product Description

ADSS Cable All Dielectric Self-Supporting Mini Span cable Single Jacket

ADSS (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. As it's name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fber optic network. EFON manufactures its own line of attachment hardware as well as supplies formed wire fittings when preferred.

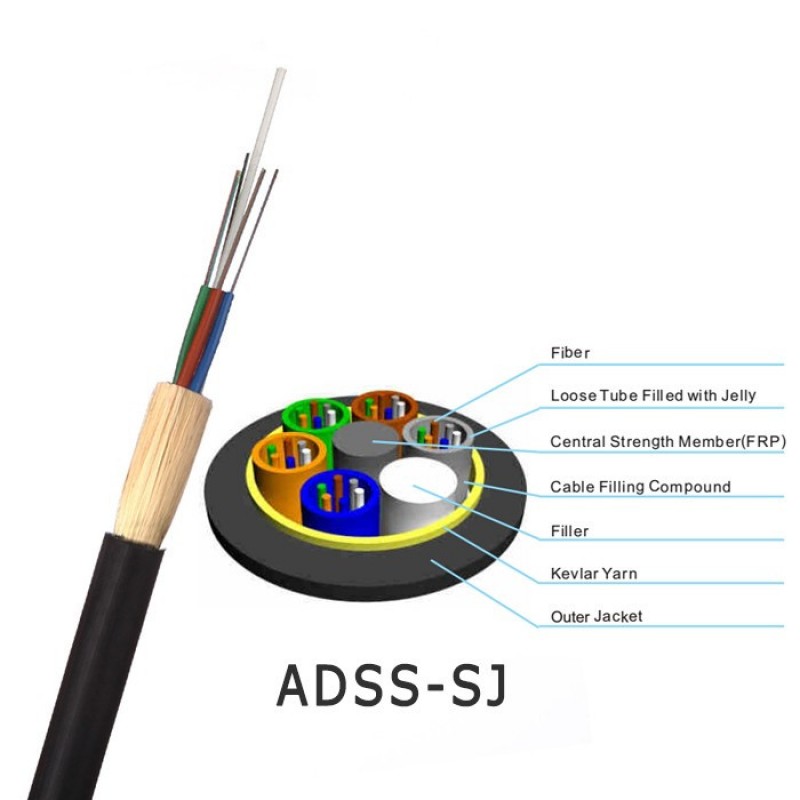

Fiber:

2-288 fibers

Uni-loose tube gel-filled



Central Strength Member:

Fiberglass reinforced plastic (FRP)


Strength Member:

Overall fiberglass reinforce yarn (Water Blocking)



Outer Jacket:

Black UV and waterproof polyethylene (PE).



Features:
All dielectric structure Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
Overall fiberglass reinforced yarn provide high tensile strength.

UV and waterproof design.



Applications:
Inter building voice or data communication backbones.

Installed as aerial/lashed, ducts, underground conduits.

Model HC-FOC-ADSS1
Brand OEM Brand, VDX Cable
Number of Conductors ≥ 10
Cable Structure ADSS
Application Aerial
Fiber options ITU G652D ,G657A,OM1,OM2,OM3,OM4
Fiber count 2-288 Cores
Installation tensile 8000N
Span 80m to 500m
Strength member Kevlar yarn
Material of jacket Black Polyethylene (PE)
Certification ISO9001/CE/RoHS
Warranty (Year) 2
Supply Ability 1000 Kilometer/Kilometers per Month
Packaging Details wooden reel ,iron-wooden reel
