> Category-5E RJ45 Patch Cord
> 350MHz High-Performance Patch Cord
> CM Rated PVC Jacket
> 26AWG 4P Stranded Bare Copper Conductors
> Exceeds ANSI EIA/TIA 568 B.2-10
> Unshielded RJ45 Modular Plugs
> 8P8C Gold Plated Pins 50U”
> 568B Wiring Color Code
> CE, RoHS Compliant

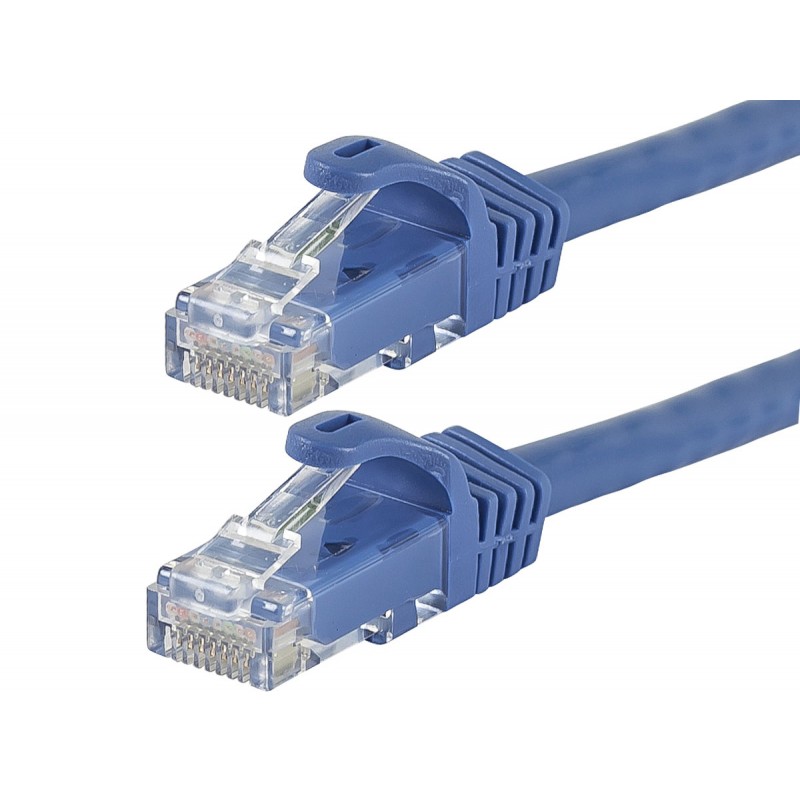

CAT5E Ethernet RJ45 Patch Cables
| Product | |
| Model | Cat5e Patch Cord |
| Brand | OEM Brand, VDX Cable |
| Conductor | |
| Material | CCA/BC/Tinned BC |
| Copper % | 21%/100%/100% |
| AWG | 28AWG/26AWG/24AWG |
| Diameter | 7×0.12mm/7×0.15mm/7×0.2mm |
| Insulation | |
| Material | HDPE |
| Diameter | 0.9mm(±0.002) |
| Shield | |
| Shiled | U/UTP, F/UTP, SF/UTP |
| Jacket | |
| Material | PVC, LSZH |
| Color | Customized |
| Marking | Customized |
| Flammability Grade | CM, CMR |
| Connector | |
| Type | RJ45 Connector |
| Pin | 8P8C |
| Gold Plated | Fμ, 3μ , 6μ, 15μ, 50μ |
| Package | |
| Neutral Package | Neutral PE Bag Package With Sticker |
| Customized Package | OEM PE Bag Package With Sticker |
| Certification | |
| Certification | ROHS, CE, ISO9001, UL, ETL |
