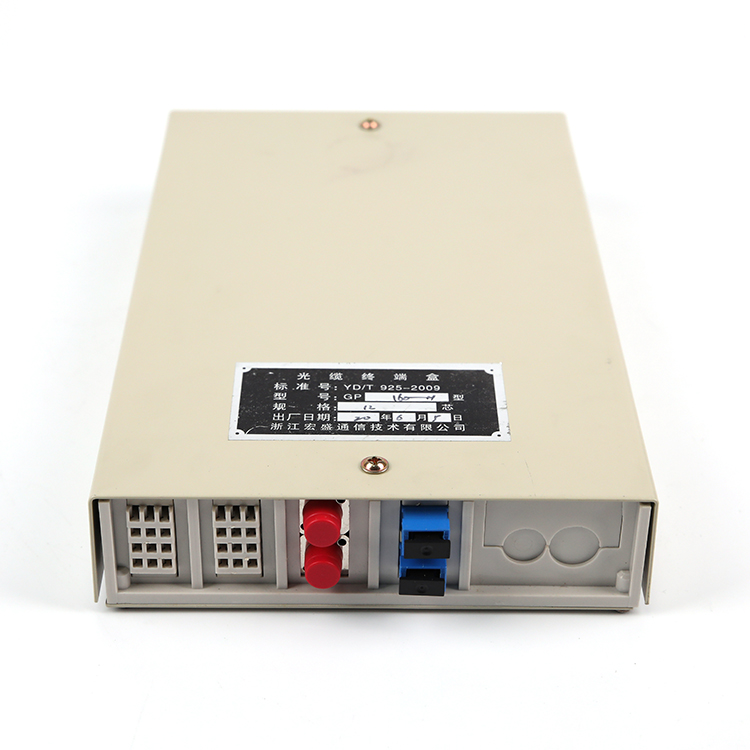

Optical cable terminal box type D is made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment, which is applicable in the installation of 19-inch cabinet ; it is of strong mechanical strength, beautiful and elegant exterior; it is capable of mounting (FC, SC, ST) and other kinds of adapters and providing reliable protection for the direct, terminal or branching connection of the fiber.
Properties：

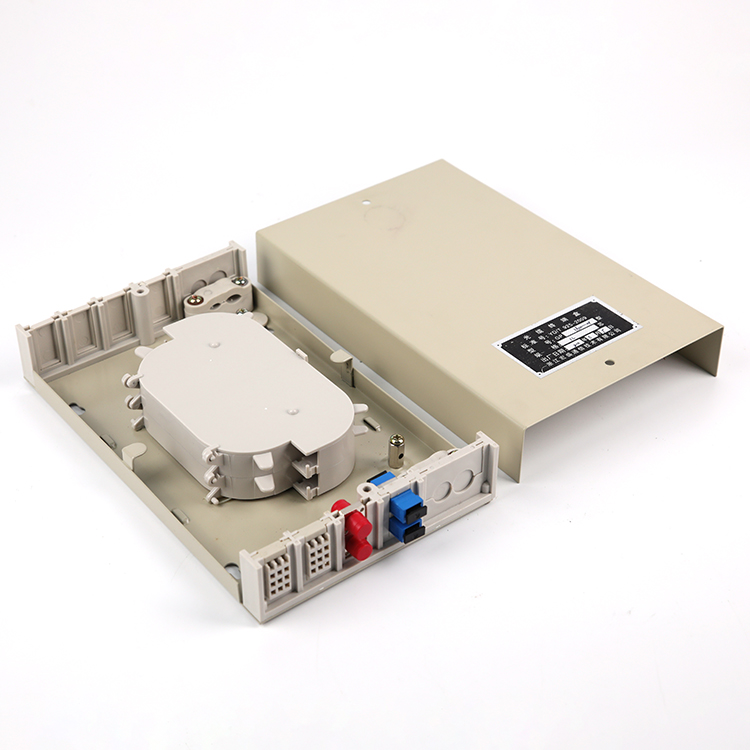

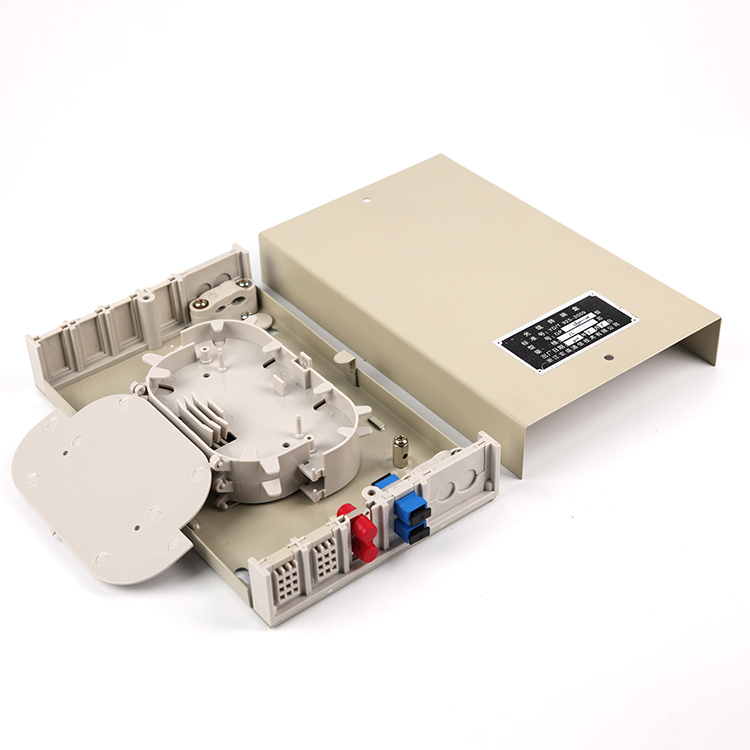

Connection function: layered turn-cover structure, equipped with special inside device to stop the connection tray from moving forth and back.
Reservation function: reserve the redundant fiber on the fixed block outside the connection tray, which is bound by bandage to ensure the regularity of the fiber within the connection tray.
Capacity：
Capacity of the connection tray: single-core bunch 12cores/tray.
Maximum capacity: can accommodate as much as 4 connection trays.
Optical cable inlet-outlet hole: the back port can accommodate 2-4 optical cables with their diameter no more than 20mm.
Schematic diagram for the accessories：
Please refer to the Instruction for the name of the accessories in the diagram.
Product Directory：
|
Product Name
|
Dimension
|
Optical Cable
Inletoutlet Hole |
12-core Tray
Single-core (Capacity) |
|
GP160-F optical cable terminal box
|
482.6X300X44.45
|
4 units
|
12 cores
|
|
GP160-F optical cable terminal box
|
482.6X300X44.45
|
4 units
|
24 cores
|
|
GP160-F optical cable terminal box
|
482.6X300X88.9
|
4 units
|
36 cores
|
|
GP160-F optical cable terminal box
|
482.6X300X88.9
|
4 units
|
48 cores
|
