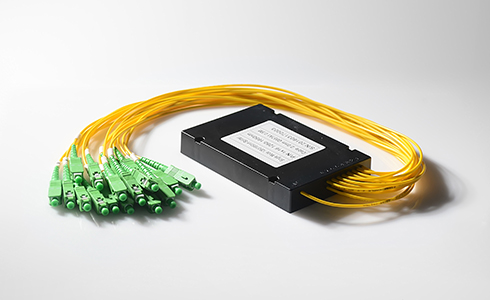

1x16 ABS PLC splitter with SC APC connector
1x16 ABS PLC splitter with SC APC connector

1x16 ABS PLC splitter with SC APC connector

Product ID : VDX-SL-01
Product Tags :
Product Attributes :

Planar waveguide light optical distributor (ABS Box splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system,broadband passive optical optical distributor (POS) use.

Product Description
Application:
.Fiber to the point (FTTX)
.Fiber to the home (FTTH)
.Passive optical networks(PON, GEPON)
.Local area networks (LAN) Cable television (CATV)
.Telecommunication Networks
Features:
.Low insertion loss.
.Low Polarization Dependent Loss.
.Good channel-to-channel uniformity.
.Loss is not sensitive to the optical wavelength and can meet the transmission needs of different wavelengths.
.High Reliability and Stability.
.Signal can be distributed uniformly to the user.
.Compact structure, small volume, can be directly installed in the existing various junction box.
