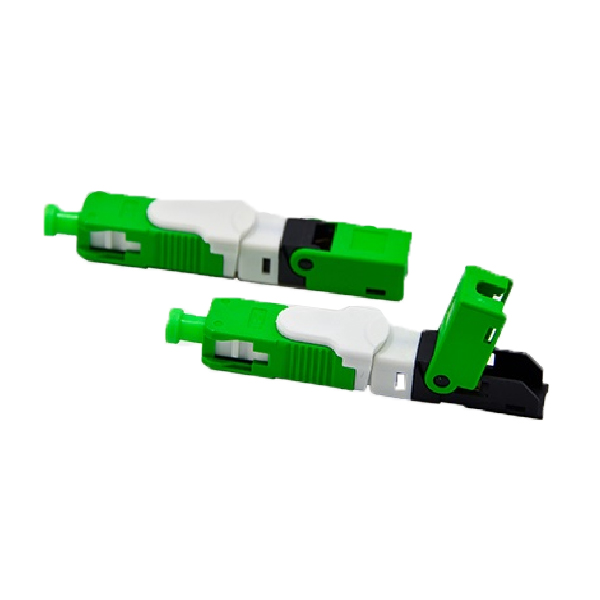

Drop cable snap-in SC-APC/UPC fiber fast
Drop cable snap-in SC-APC/UPC fiber fast

Drop cable snap-in SC-APC/UPC fiber fast

Product ID : VDX-CC-02
Product Tags :
Product Attributes :

With great demands of the global market and thanks to our R & D department efforts and hard-working, our snap-in SC-APC/UPC fiber fast connectors come out to the world with American basic innovative plastic 1000/1000 material, which makes our fast connectors more durable than others.

Product Description

They comply with  below international standards:

  • 1.ITU-T and IEC and China standards:
  • 《YDT  2341.1-2011 Field Assembled Optical Fiber Active Connector Part 1: Mechanical Type》
  • 《China  Telecom fast Connector Standard [2010] No. 953》
  • 《01C  GR-326-CORE (Issue 3, 1999) General requirements forsingle-mode  optical connectors and jumpers》
  • 《YD/T  1636-2007 Fiber to the Home (FTTH) Architecture and General Requirements》  Fiber Optic Cable Connector Part 4: Sectional Specification Optical Fiber  Optical Cable Mechanical Connector

Connector Parameters



Cable Scope

3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop    Cable



Coating Diameter




Operation Time

about 15s(excluding fiber presetting)

Insertion Loss

≤ 0.3dB(1310nm & 1550nm)

Return Loss

≤ -50dB for UPC, ≤ 55dB for APC

Success Rate


Reusable Times

>5 times

Tighten Strength of Naked Fiber

>5 N

Tensile Strength

>30 N


-40 ~ +85 C

On-line Tensile Strength Test (20 N)

IL ≤ 0.3dB

Mechanical Durability(500 times)

IL ≤ 0.3dB

Drop Test

IL ≤ 0.3dB

  •   Applied to open FTTH fiber terminal
  •   Used  in closure boxes, cabinets, terminal boxes, etc.
  •   Recovery  and maintenance in fiber breakage and other accidents
  •   LAN,  WAN, data and video transmission
  •   Construction  and maintenance of fiber access for end users
  •   Fiber  entry for mobile base stations
