We supply FPP11 - 4U 288F Rack Mount Patch Panel . Shenzhen Adtek Technology Co., Ltd. was established in 2007, as the R&D base of Adtek Group, it is mainly work on fiber optic patch cords & cables and other fiber communications products.
Product Feature:
★ This wire-bonding module can easily terminate the grounding wire of shielded cable
★The front end comes with a cable port identification system, which is convenient for system maintenance after installation.
★ This high density fiber patch panel ensures fast and effective fixing of cables and shield grounding.
Product Description:

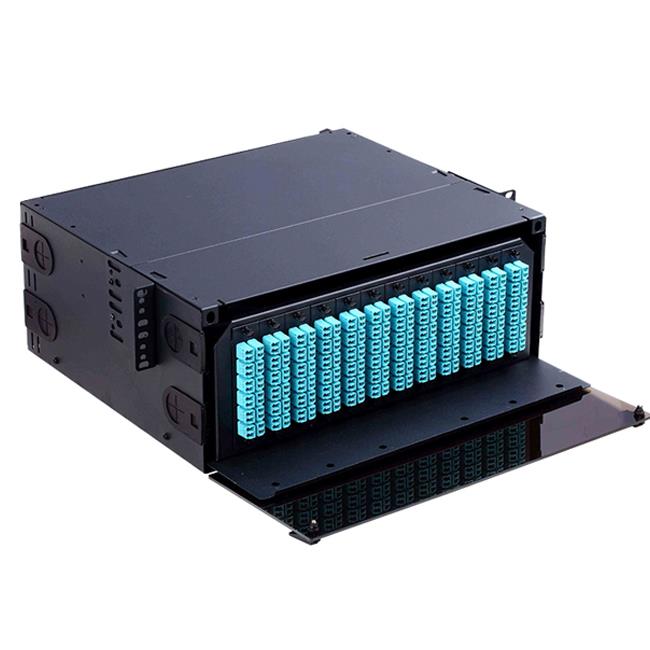

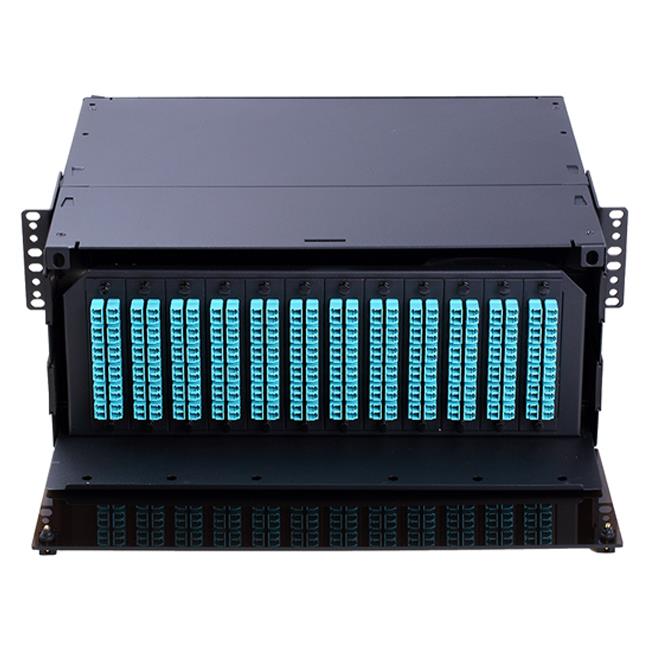

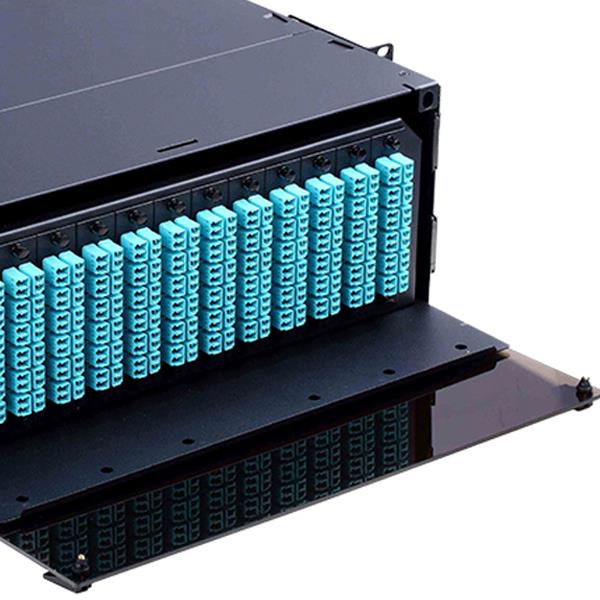

This high density fiber patch panel is a component of nexans LAN systems and an integral part of Nexans' integrated cabling system for efficient, fast, leading, and reliable reliability. In addition, it is pre-assembled and can be installed in standard 19'' cabinets. With a fixed structure, the back end uses IDC termination for fast termination. The high density fiber patch panel is pre-assembled and can be installed in a standard cabinet. The mechanical sliding structure is used to support the front end of the cabinet for easy installation and maintenance. The back end uses termination for fast termination. The encapsulated panel enclosures effectively reduces environmental impact. The integrated Clip-On cable organizer ensures fast and efficient fixing of the cable and shield grounding.
|
Part Number |
FPP11-4U |
Fiber Count |
288 |
|
Front Connector |
LC UPC DX adapter (144pcs) |
Rear Connector |
MPO/MTP adapter (24pcs) |
|
Fiber Type |
OM3 50/125um |
LGX Cassette or adapter panel |
12 |
|
Channel Insertion Loss |
≤ 0.35dB (MTP) ≤ 0.2dB (LC) |
Return Loss |
≥ 20dB (MTP) ≥ 35dB (LC) |
|
Cassette Material |
Metal |
Color |
Black |
|
Cassette Type |
4RU 19'' |
Dimensions (H*W*D) |
4U*350*482mm |
