MPO-LC Cassette 02
| Front Connector:LC UPC/PC DX adapter (12 pcs) |
Fiber Type:SM and MM optional |
| Cassette Material:Metal (SPCC) |
Color:Black |
| Channel Insertion Loss:≤ 0.2dB (LC) |
Return Loss:SM≥ 55dB (LC) MM≥ 35dB (LC) |
| Part Number:LGX-2MPPO-12LCDX |
Fiber Count:24 |
| Cassette Type:LGX |
Dimensions (H*W*D):129*127*29mm |

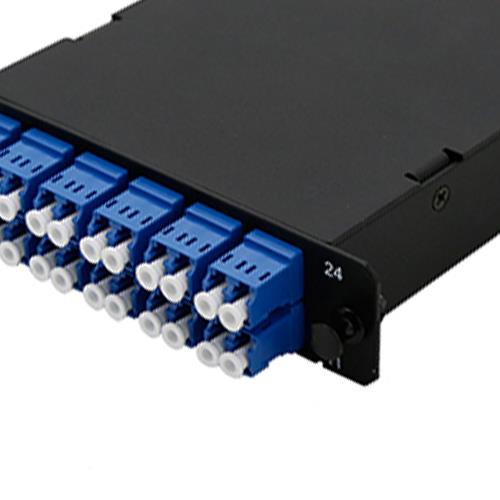

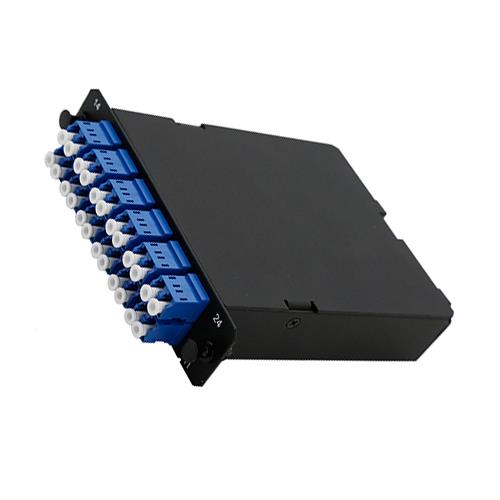

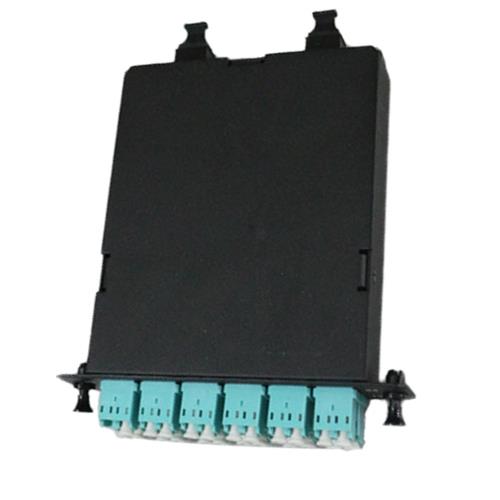

24 Fibers Elite MTP To LC Duplex MPO/MTP Fiber Optic Plug-N-Play Cassette, 24 Strands OM3 MMF
Adtek MTP Fiber Cassette Modules offer 24-fiber MTP adapter on the rear of the units routed to duplex LC adapters on the front patch field, which interconnect with high-density fiber cable assemblies for quick connection of remote or data center applications.
Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
| Fiber Count |
24 |
Fiber Mode |
OM3 50/125μm |
| Front Connector Type |
12 LC UPC Duplex |
Rear Connector Type |
1x MTP UPC Male (pinned) |
| MTP Adapter |
Key up to Key down |
Dimensions (HxWxD) |
1.38''x4.29''x4.64'' (35x109x118mm) |
| Insertion Loss |
MTP≤0.35dB, LC≤0.2dB |
Return Loss |
MTP≥20dB, LC≥30dB |
| Operating Temperature |
0°C to 70°C (32°F to 158°F) |
Storage and Shipping Temperature |
-40°C to +75°C (-40°F to 167°F) |
| RoHS Compliancy Status |
Compliant |
Application |
Matching for Type AF Cassette |
